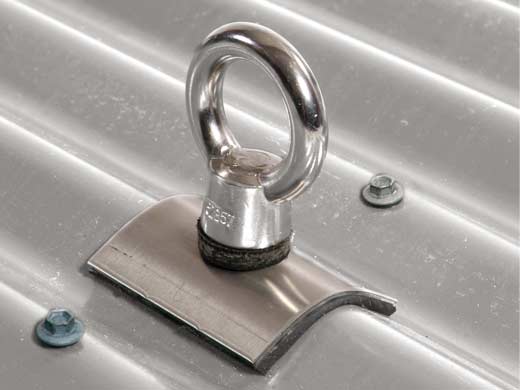

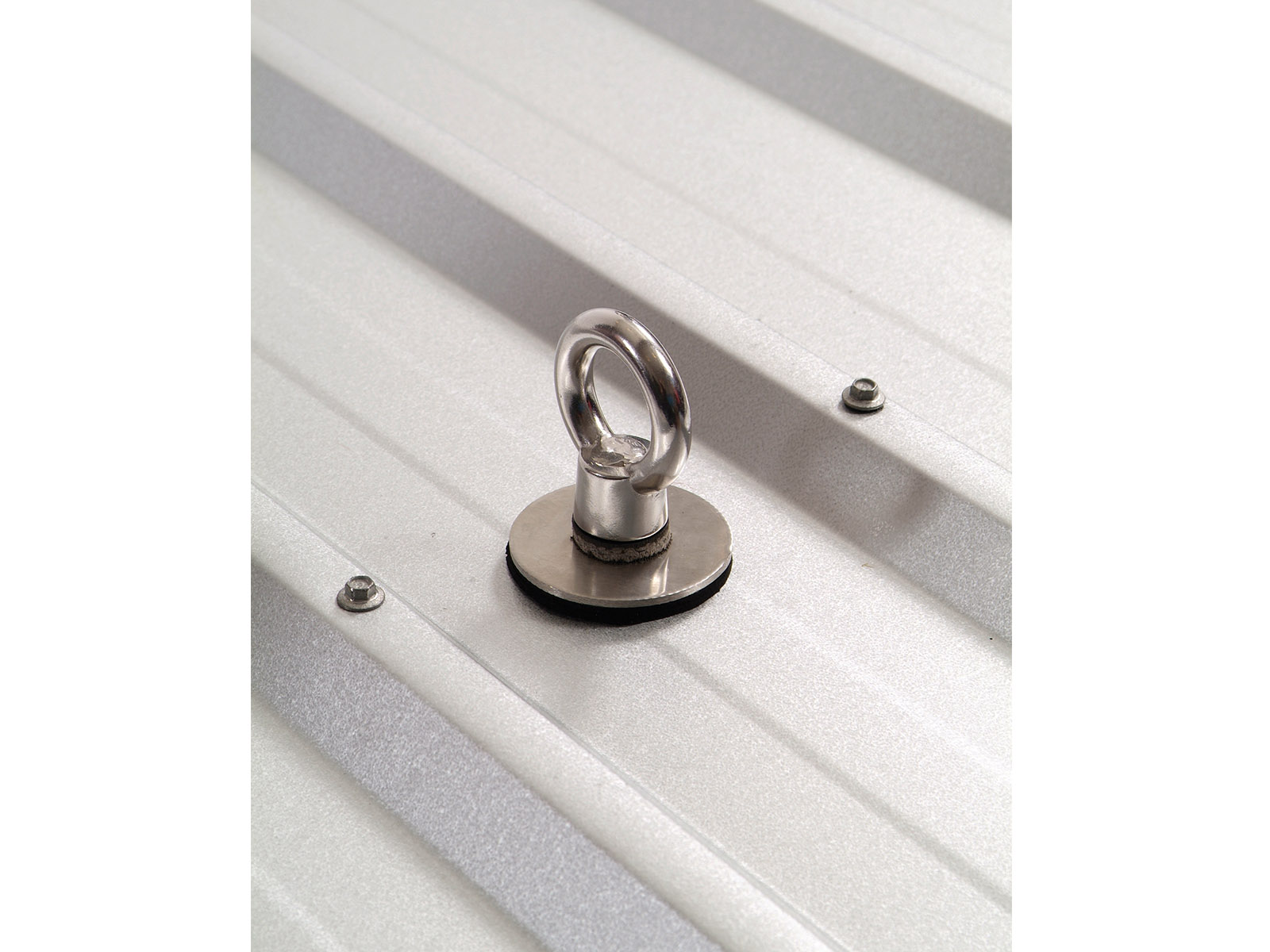

Hi-Safe RA10 Permanent Anchor

The Hi-Safe RA10 Anchor range is available in an array of base plates providing the user with an easy to install, permanently mounted anchor system for most roof structures with steel purlins.

The anchor attachment point sits high and proud providing the user with good clearance options. Each Hi-Safe RA10 Anchor has an individually identified serial number.

Features

• Full stainless steel construction
• Individually identified serial number
• M12 eye bolt 120 mm
• Easy installation
• Supplied with purlin setting block and string applicator

Hi-Safe RA10 Purlin Anchor Models

*Must be used with a personal energy absorber and lanyard system. Any roof structure must be inspected by a competent person and deemed strong enough to yield the required forces prior to application. If in doubt consult an engineer for clarification. The RA10 is suitable for steel purlins only. Do not install into timber.

• Meets AS/NZS1891.4 anchorage requirements
• Rated at 15 kN fall arrest for single person use
• Rated at 22 kN fall arrest for two person use

• View Roof Anchor Selector / Roof Fitment Matrix guide
• Roof Safety Work Formulas
