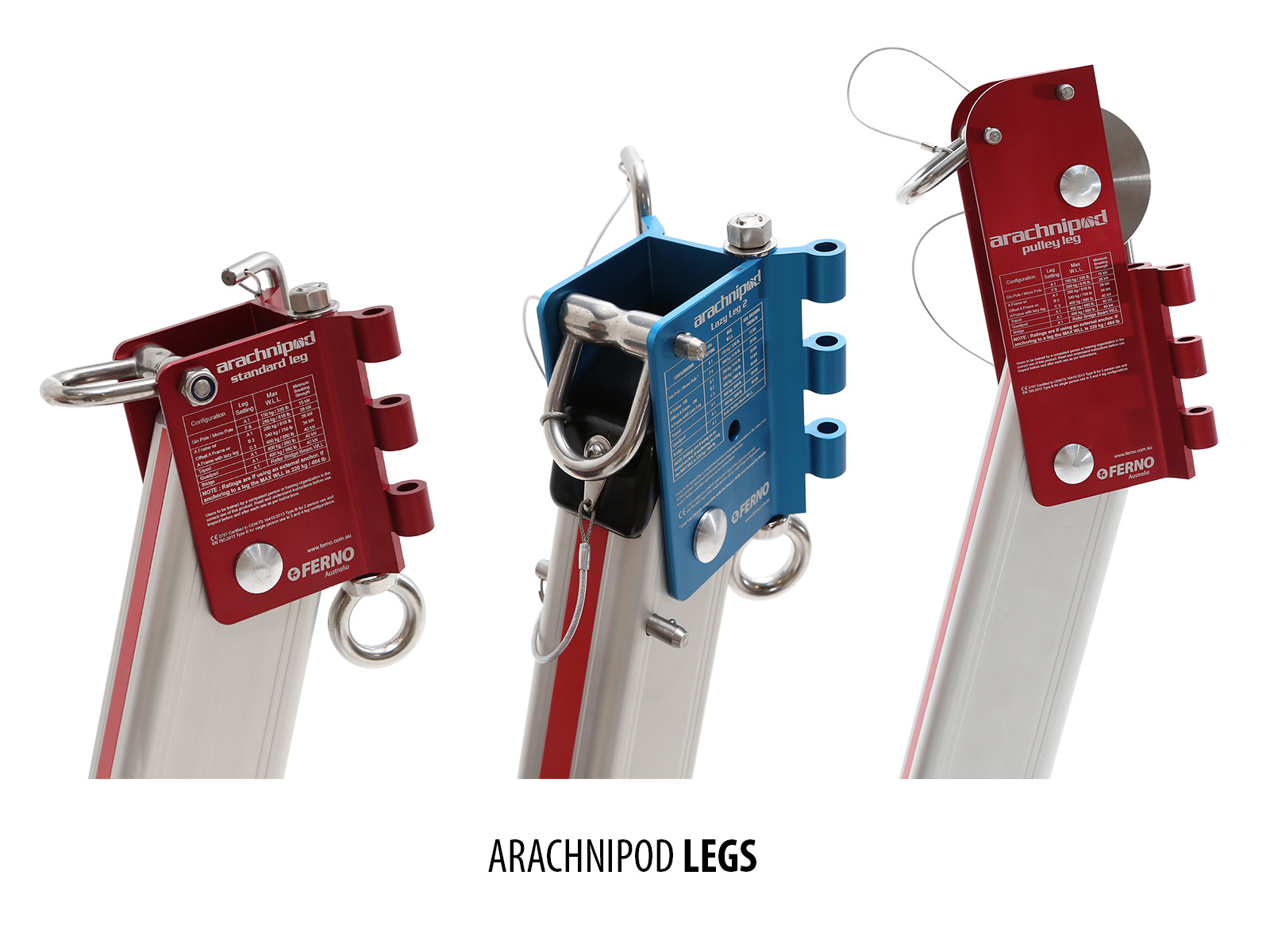

Arachnipod Legs

Arachnipod legs are made of telescopic sections, a head and a foot socket. All legs are supplied with a dual-function Standard Foot 2 and feature alpha-numeric labels which aid communication when setting up leg heights.

The Arachnipod’s patented leg heads are designed with a cut-out edge which forms a movable hinge when one head is slotted together with another leg head. There are three styles of Arachnipod leg, distinguished by their heads: Standard, Pulley and Lazy Leg.

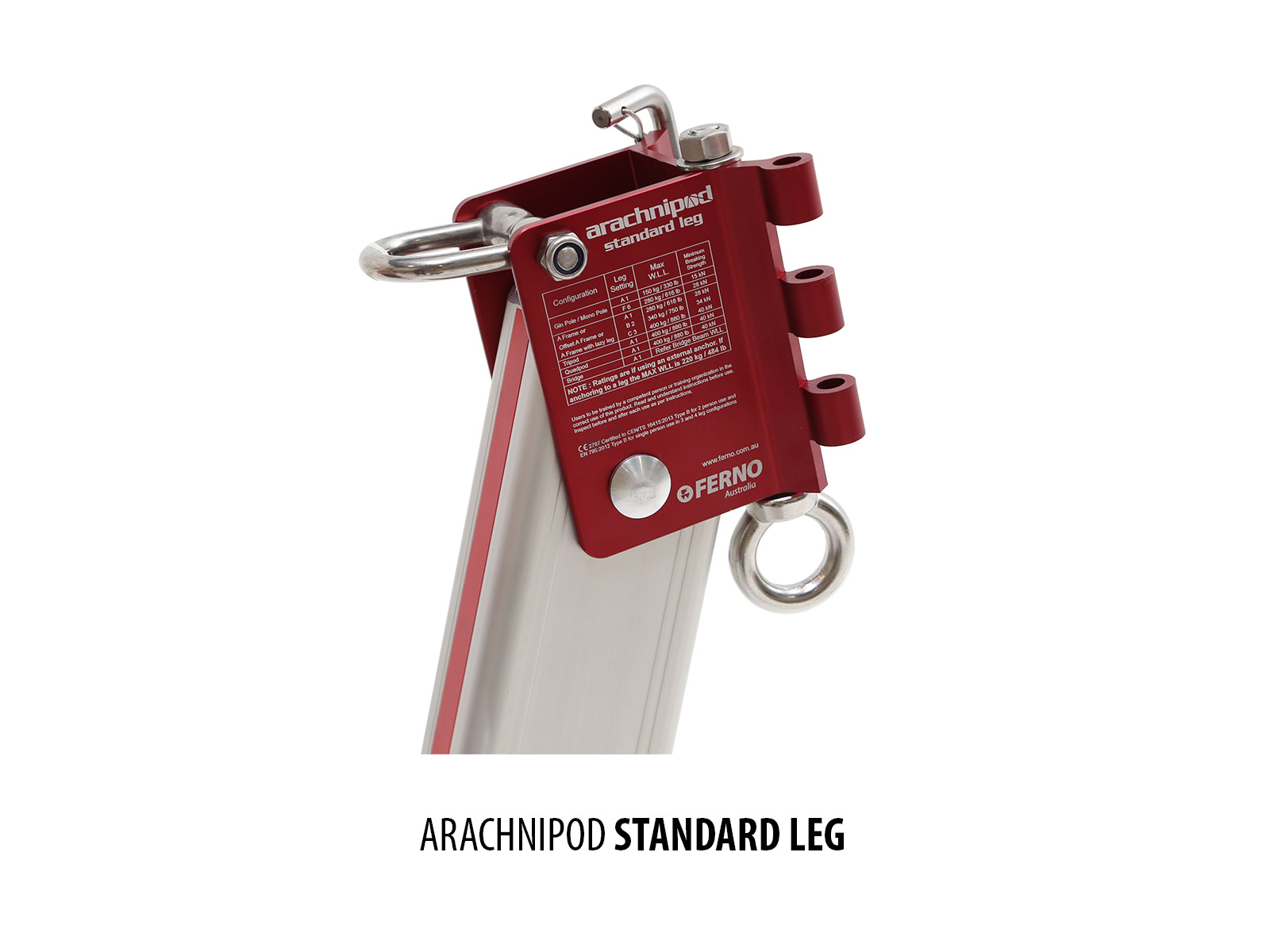

Standard Leg

• Red coloured head
• One swivelling rated load attachment point
• Stabilisation attachment point

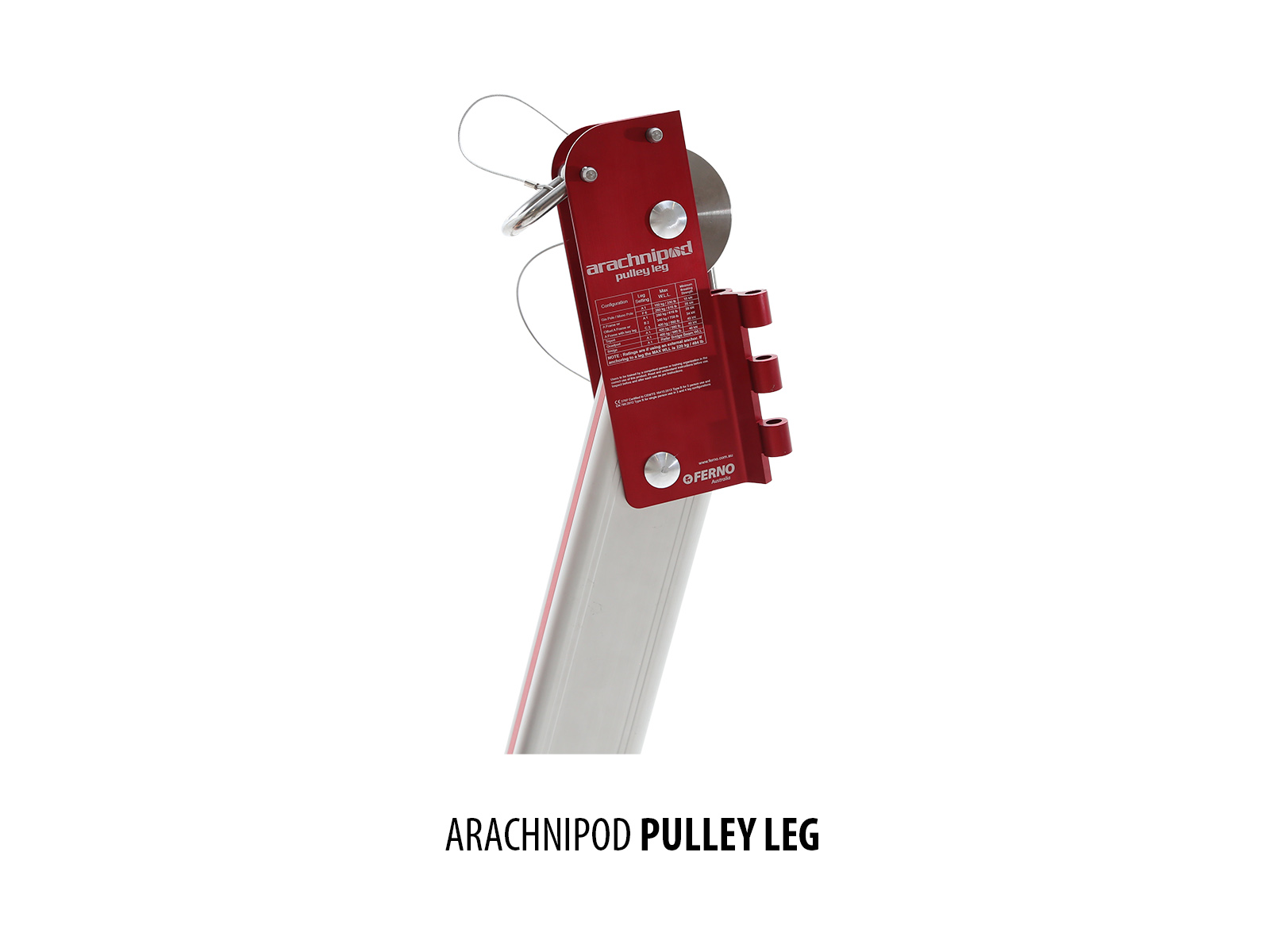

Pulley Leg

• Can be used in place of a Standard Leg to add a pulley function to a tripod, A-frame or other configuration
• May be used as a handrail monopole
• Double-grooved pulley accommodates fibre rope up to 13mm diameter, or steel / stainless steel wire rope cable up to 8mm
• Removable stabilisation point

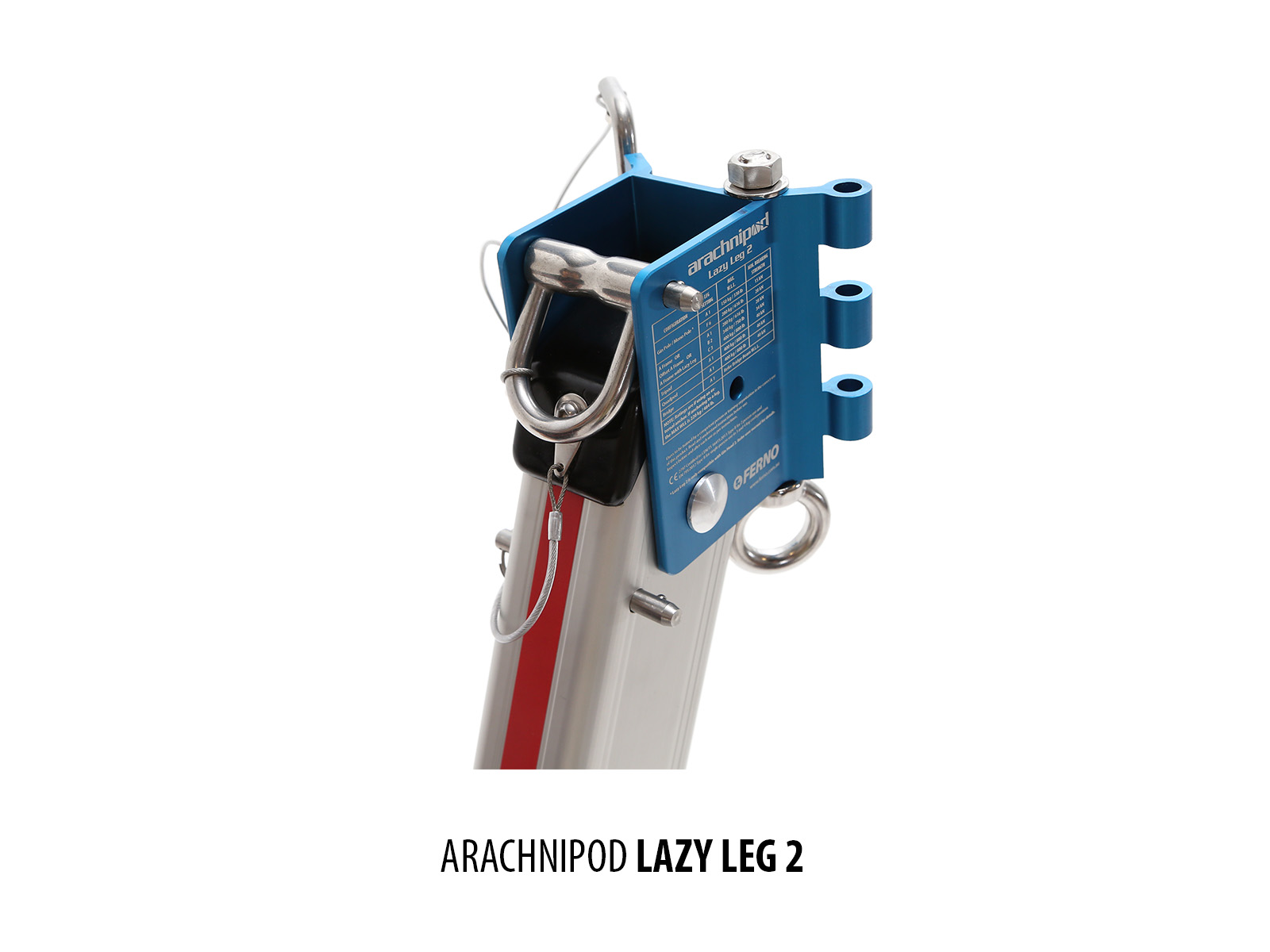

Lazy Leg 2

• Blue coloured head which pivots to enable the leg to be angled to a range of 180 degrees
• One swivelling rated load attachment point
• Removable stabilisation point
• May be converted to a Standard Leg by locking its pivoting head with a Lazy Leg Adaptor (available individually or within Accessory Kits)
• Lazy Leg is used to form a gin or monopole or A-frame with Lazy Leg – additional configuration accessories required
• Lazy Leg 2 is compatible only with Gin Head 2

CODES

90-0108 Standard Leg
90-0110 Pulley Leg
90-0114 Lazy Leg 2
