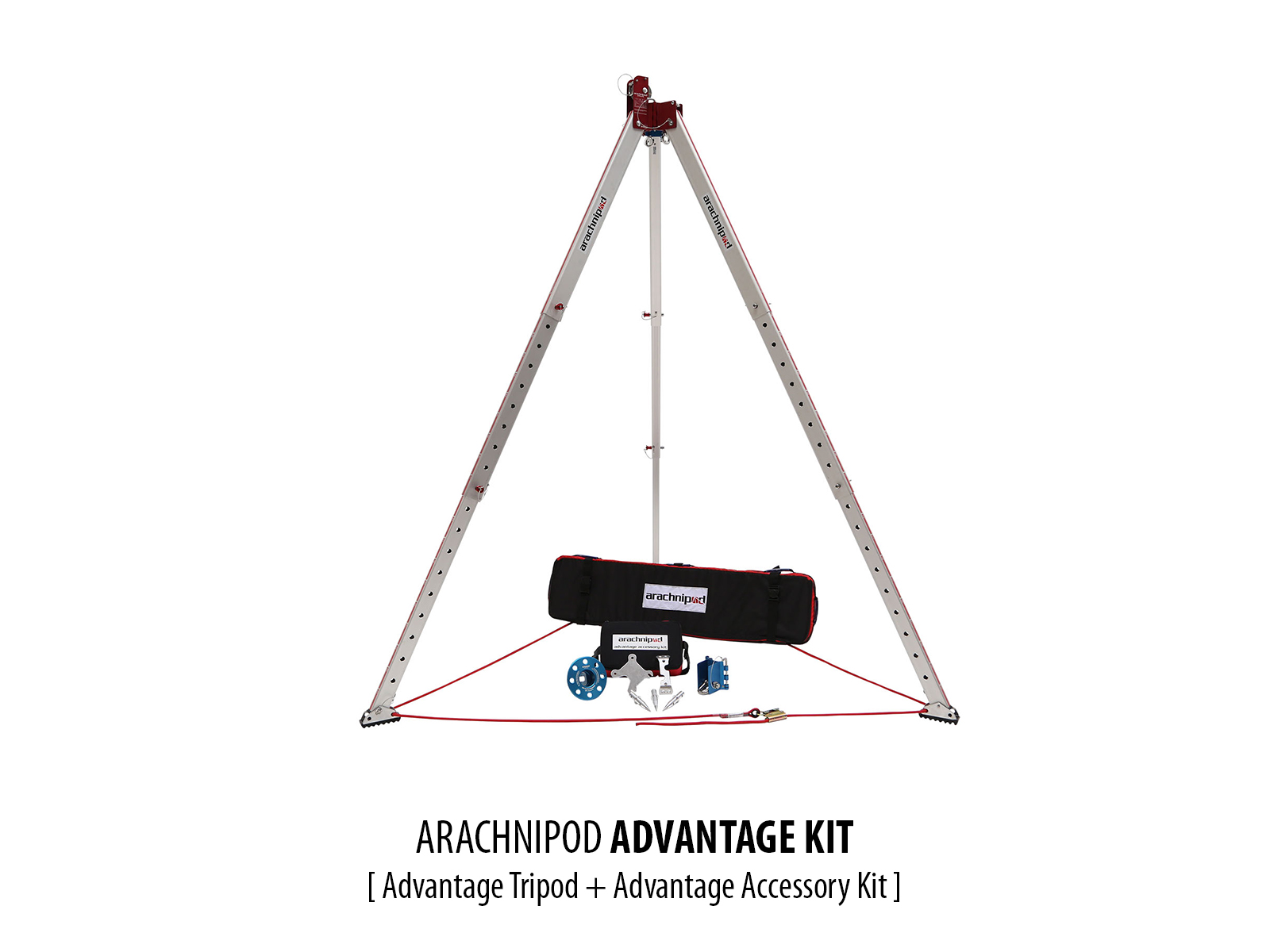

Arachnipod Advantage Kit

The Arachnipod Advantage Kit includes the Advantage Tripod plus the Advantage Accessory Kit. The system provides two load attachment points, three stabilisation rigging points, a double-grooved pulley plus the versatility to configure more technical A-Frame systems.

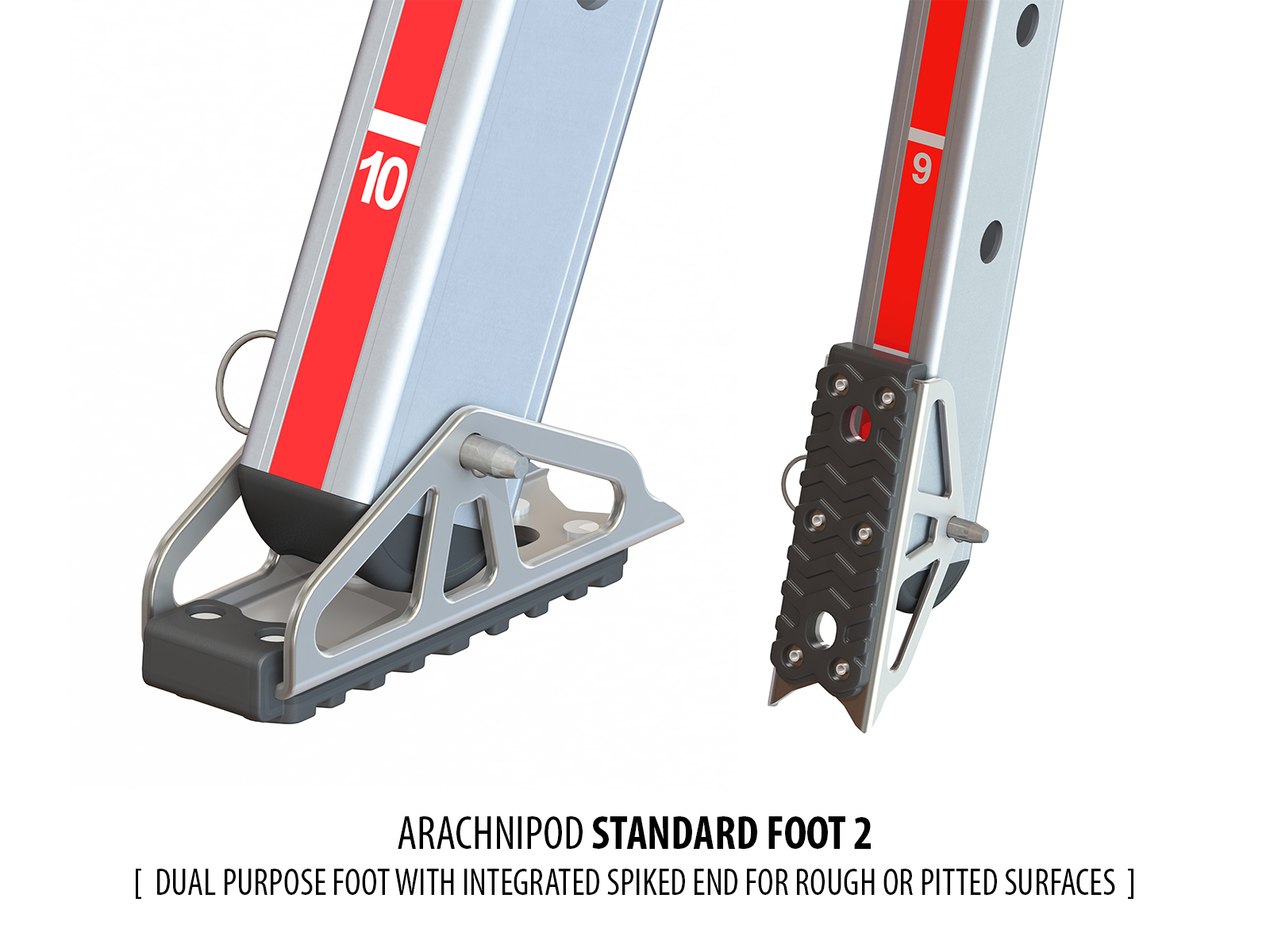

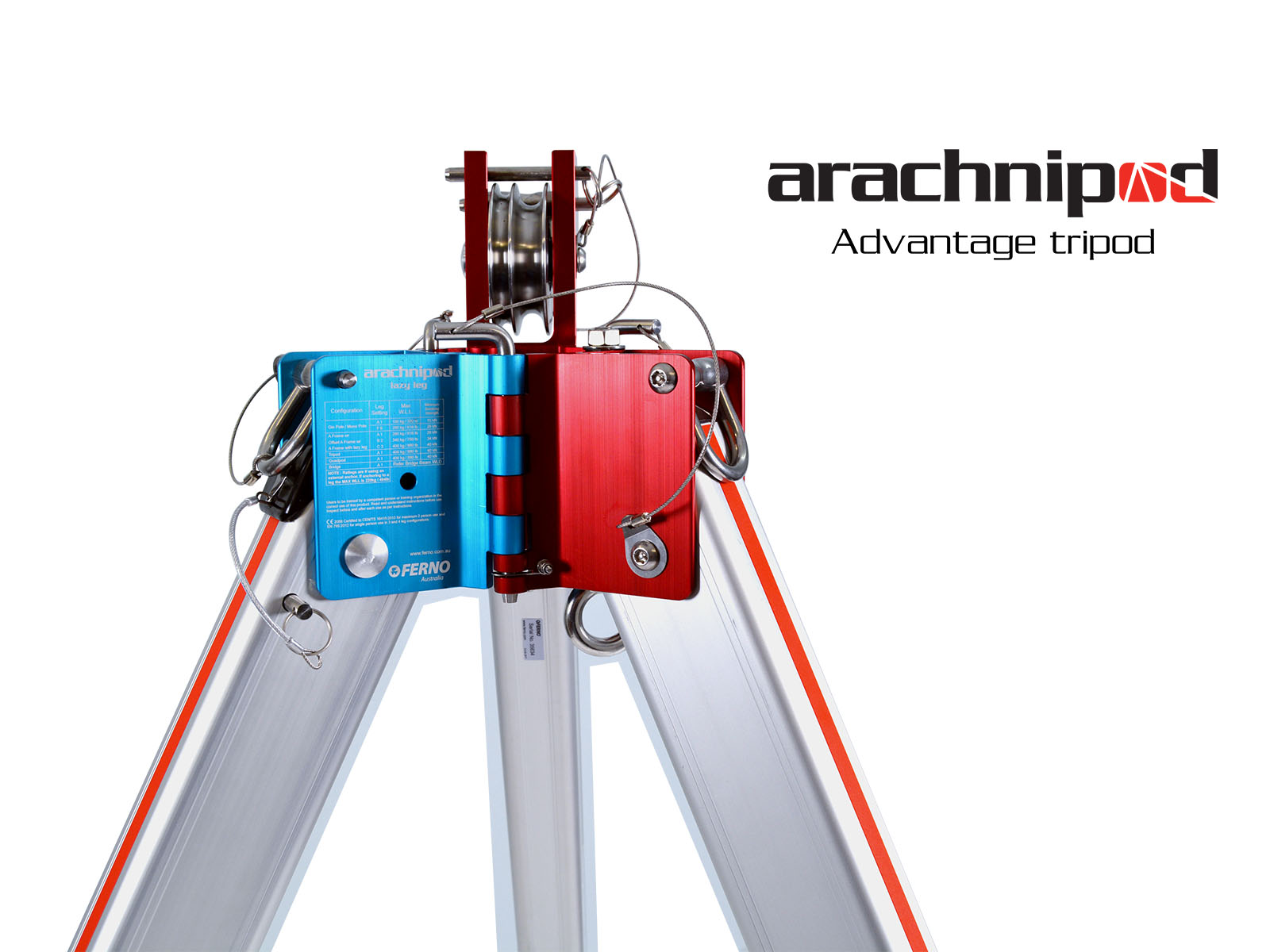

The Arachnipod’s uniquely designed head system allows the legs to be quickly disconnected from each other to store flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard Foot 2.

Features

• Rectangular, adjustable legs with leg pins
• Two stainless steel swivel eye bolt anchor points
• Stainless steel double-grooved pulley accommodates 8mm steel wire rope and fibre rope up to 13mm
• The versatile Lazy Leg also functions as a Standard Leg
• Each leg includes a stabilisation attachment point
• Upgraded Standard feet suits both flat and uneven surfaces, pivot to adjust to ground variations and incorporate an aggressive non-slip tread pattern

In the Box

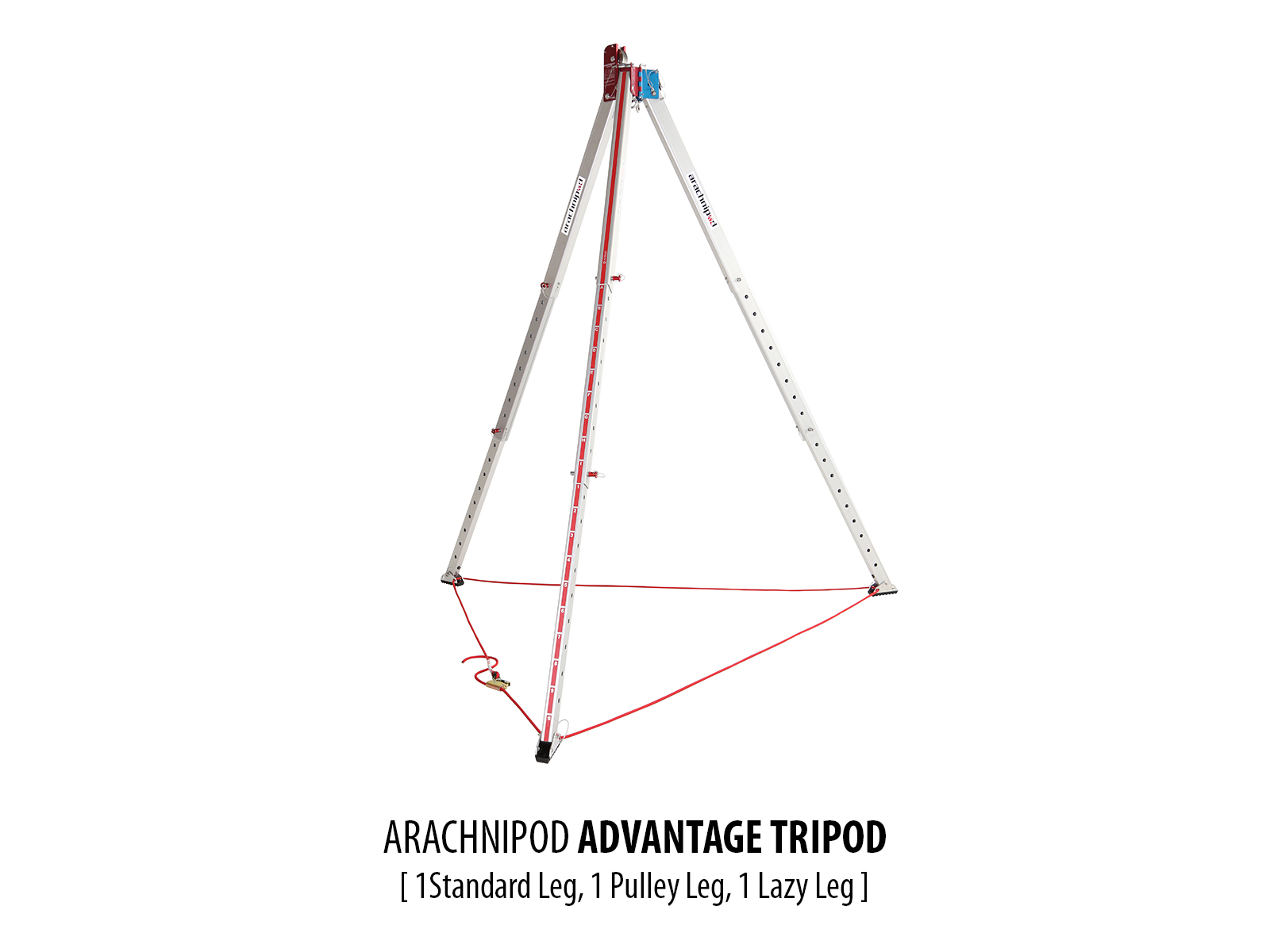

• 1 x Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilisation rigging
• 1 x Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fibre rope as well as up to 8 mm steel/stainless steel wire cable rope
• 1 x Lazy Leg 2 incorporates a swivelling, rated load attachment point, is used to in the formation of A-Frames and Gin/Mono Pole system
• 1 x Lazy Leg Adaptor accessory which morphs the Lazy Leg into a Standard Leg
• 1 x Feet Rope and Rope Grab
• 1 x Transport Bag

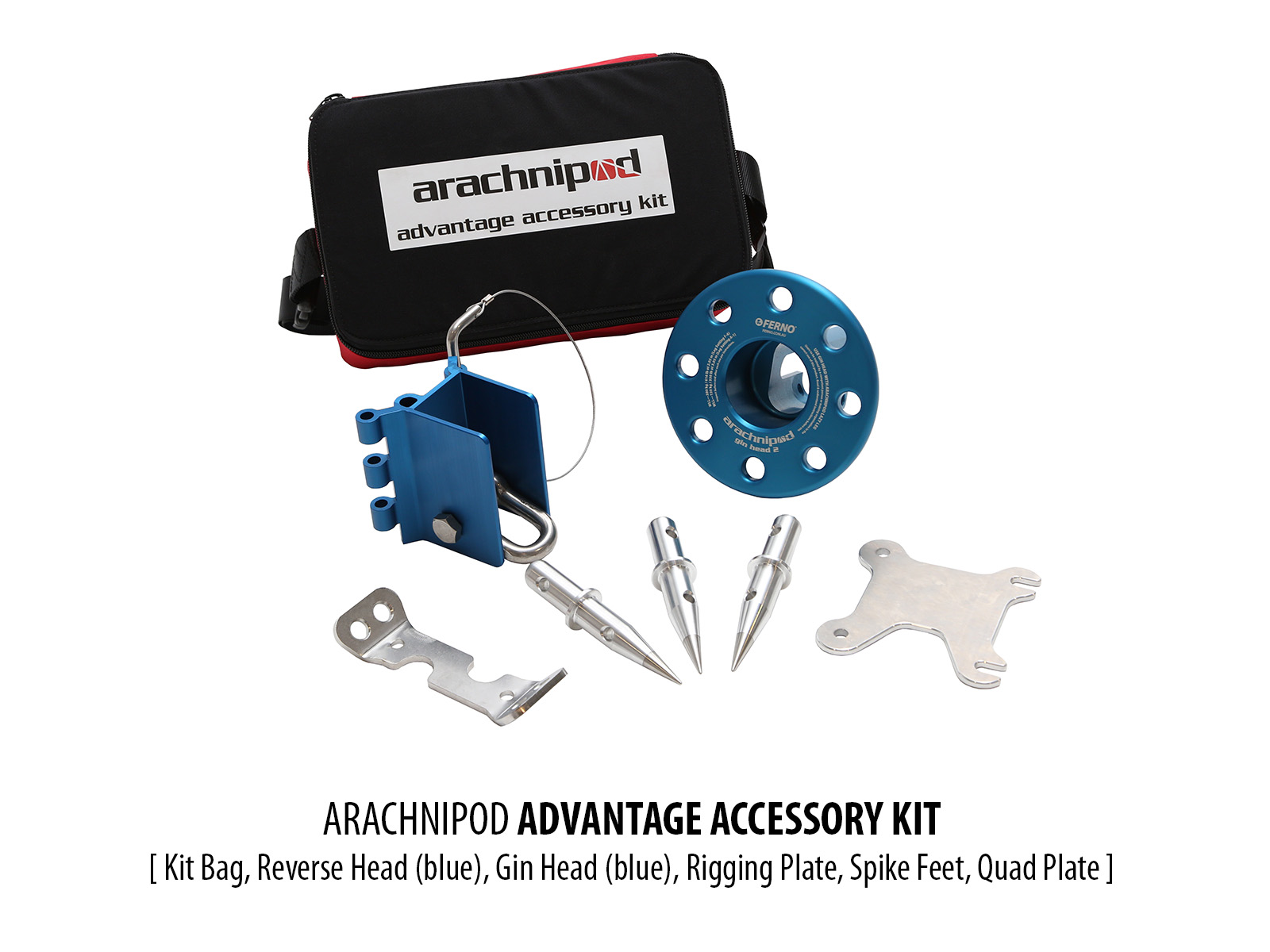

• 1 x Advantage Accessory Kit which includes the Kit Bag, 1 each Reverse Head, Gin Head, Rigging Plate, Quad Plate and 3 Spike Feet

The Advantage Tripod can be Configured into:

• Tripod
• A-Frame (Rigging Plate required – supplied)
• Sideways A-Frame (Rigging Plate – supplied)
• A-Frame with Lazy leg (Reverse Head and Quad Plate required – supplied)
• Gin/Monopole (Lazy Leg and Gin Head required – supplied)
• Handrail Recovery Monopole
